Instrumentation & Kits
Instrument References
Comprehensive set of dedicated instruments, optional instruments, and bone substitutes for precise surgical execution.
Instruments
| Ref. | Description | Qty |
|---|---|---|
| ANC014-1 | NCT Cutting guide – piece 1 | 1 |
| ANC014-2 | NCT Cutting guide – piece 2 | 1 |
| ANC019 - ANC025 | Metallic wedges for knee osteotomy (6mm - 16mm) | 1 |
| ANC024 | Handle for metallic wedge and cutting guide | 2 |
| ANC120-US | Ø4.2 mm countersink with US quick coupling system | 1 |
| ANC211 | Ø4.0 mm quick coupling drill bit | 3 |
| ANC352 | Ø6 mm US quick coupling handle | 2 |
| ANC975 | T20 screwdriver with US quick coupling system | 2 |
| ANC998 | Ø4.0 mm threaded guide gauge | 3 |
| 33.0222.200 | Pin Ø2.2 L200 mm | 6 |
* Showing selected core instruments. See full catalog for all references.
Optional Instruments
| Ref. | Description |
|---|---|
| ANC652 / ANC653 | HTO Alignment rod / Support |
| ANC1063 | Ø4 mm mini invasive threaded guide |
| ANC1088 - 1120 | Metallic wedges for osteotomy - Narrow |
Optional Bone Substitutes
| Ref. | Description |
|---|---|
| 0106C01 | Rounded wedge 06 mm |
| 0108C01 | Rounded wedge 08 mm |
| 0110C01 | Rounded wedge 10 mm |
| 0112C01 | Rounded wedge 12 mm |
| 1414C01 | Rounded wedge 14 mm |
Kit Description & Removal
Complete System
The ACTIVMOTION S surgical kit includes meticulously arranged instruments covering all surgical steps from osteotomy opening to final fixation.
- Contains dedicated drill guides, pins, and length gauges
- Soft tissue protectors and retractors
- Quick coupling handles and screwdrivers
Removal Kit
If you have to remove ACTIVMOTION S implants, make sure to order the Newclip Technics removal set which includes the following instruments:
- ANC975: T20 screwdriver with US quick coupling system
- ANC352: Ø6 mm US quick coupling handle
An extraction set can also be ordered separately.
1

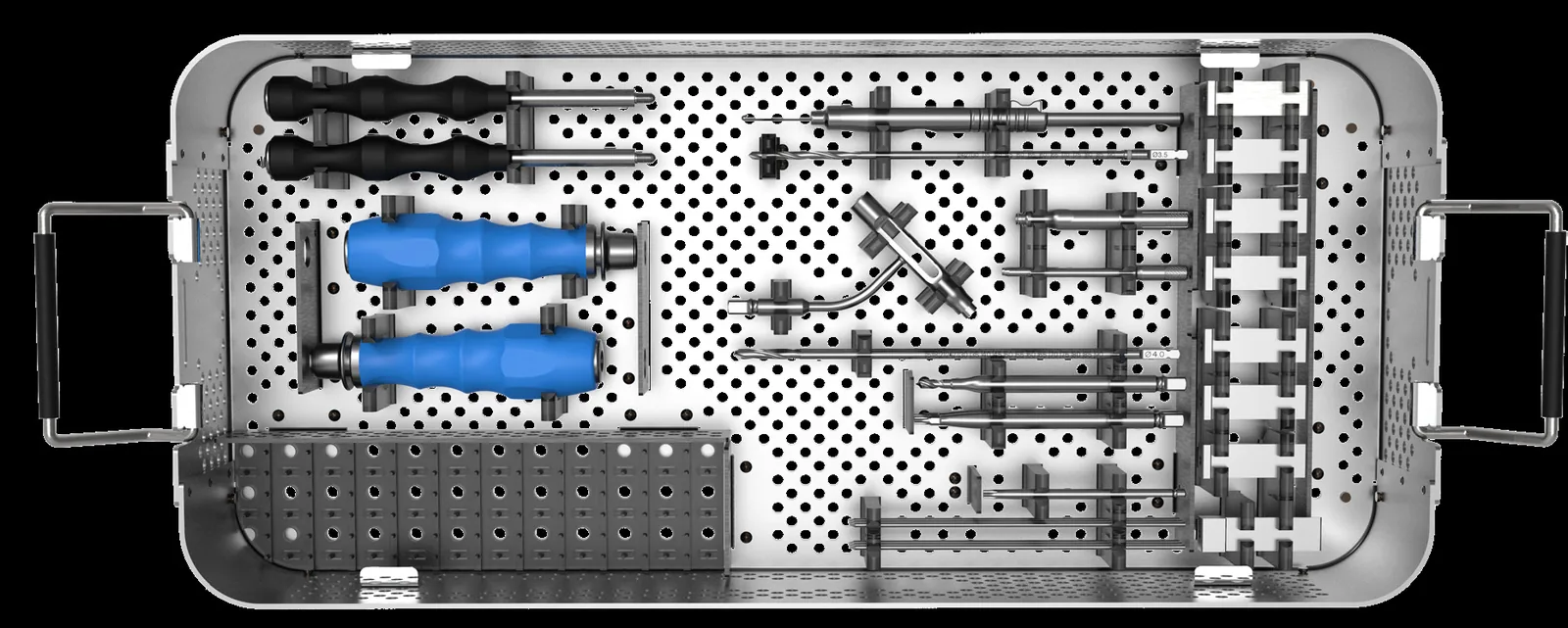

TRAY 1 (Top)
Screwdrivers & Hand instruments
2

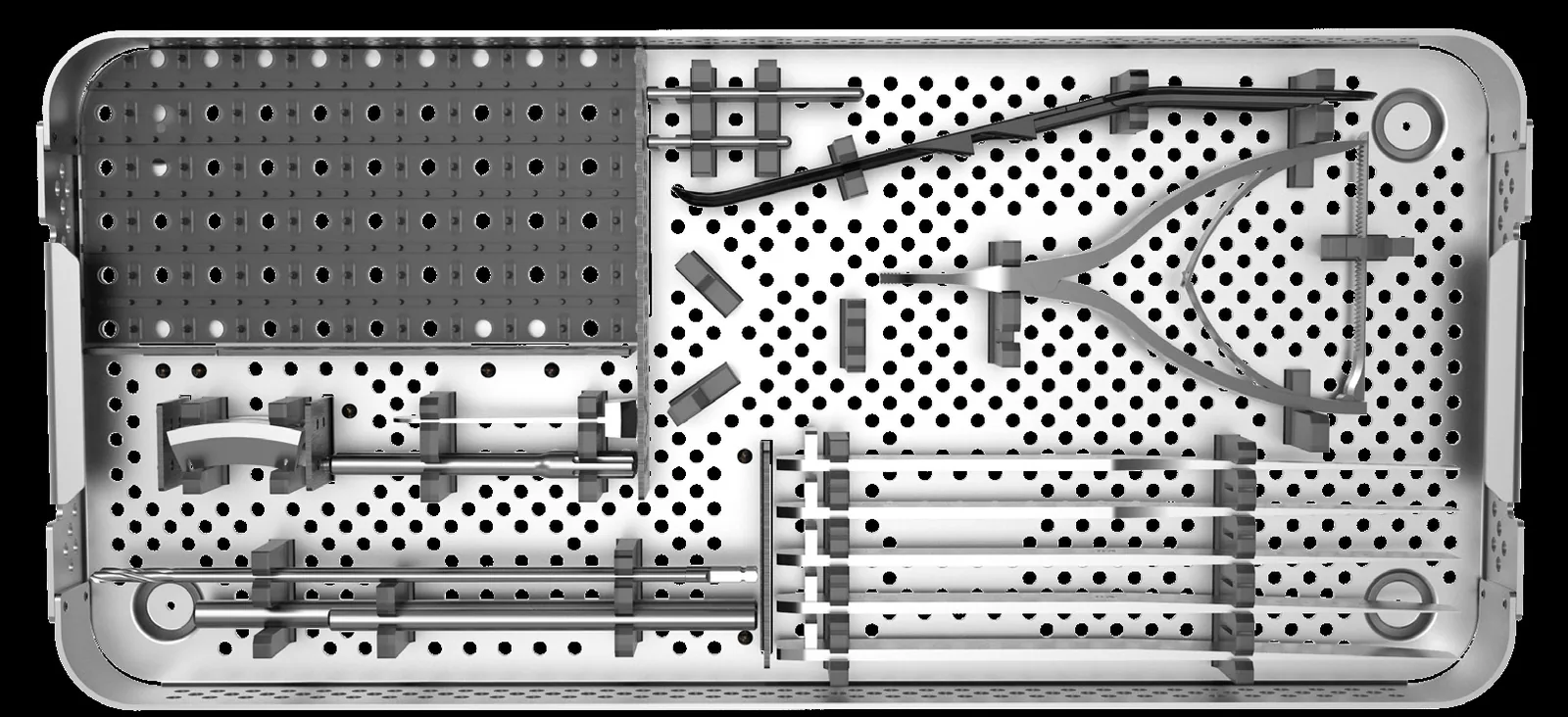

TRAY 2 (Bottom)
Cutting guides & Drill bits
3
OUTER CASE
Sterilization & Storage
