Technical Features
Fixation Features

Screw & Locking Fixation Science

Precision-engineered fixation features: reinforced core screws, buried low-profile caps, patented Oneclip® monoaxial and DTS® polyaxial locking systems, and controlled compressive ramp mechanics.

Screw Technical Features

Numbered Identifiers (1), (2), (3)

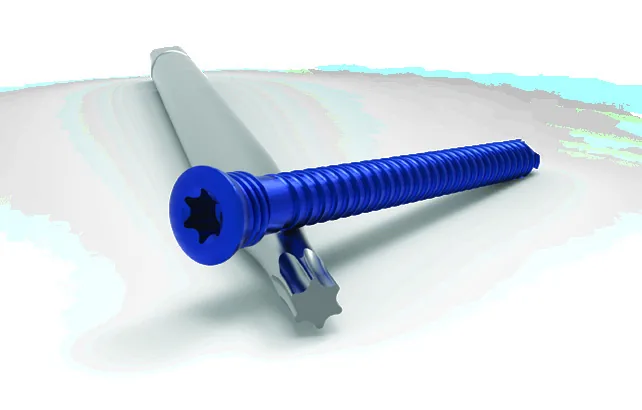

  • Ø4.5 mm reinforced core screw
    1

    Ø4.5 mm Reinforced Core

    Ø4.5 mm reinforced core screws for optimized mechanical stability and enhanced shear resistance.

  • Self-tapping system
    2

    Self-Tapping Systems

    Self-tapping systems to help for insertion and precise bone thread purchase.

  • Hexalobular T20 recess
    3

    Hexalobular T20

    Hexalobular T20 drive for optimum torque transmission and elimination of screwdriver stripping.

Implant Material: Titanium alloy Ti-6Al-4V ELI (ISO 5832-3)

Locking System Features

Numbered Identifiers (4), (5), (6)

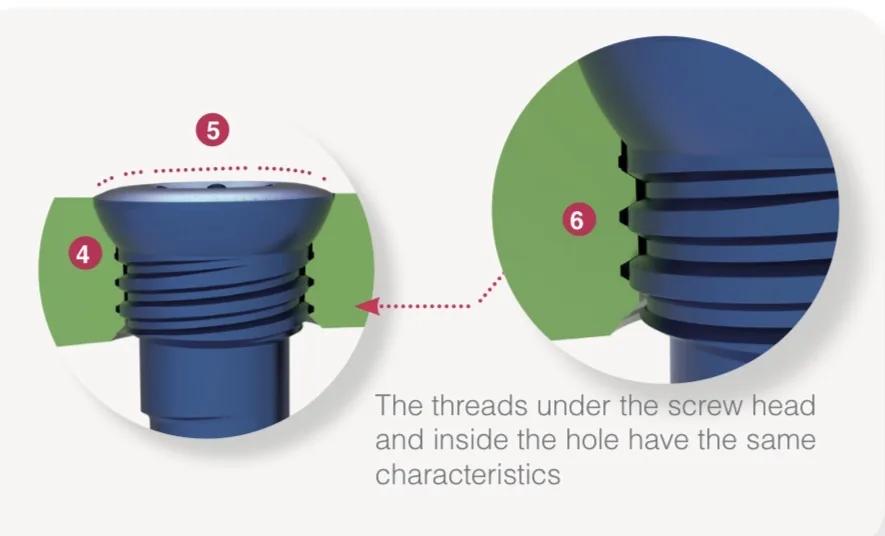

Low Profile Construct
  • The screw is stopped by cap
    4

    Cap Stop Locking

    The screw is stopped in the hole by its cap, insuring the locking.

  • Buried screw head in plate
    5

    Buried Screw Head

    The screw head is buried in the plate (5) to minimize the risk of soft tissue irritation.

  • Coaptation of both profiles
    6

    Profile Coaptation

    Coaptation of both profiles when locking (6). Plate and screws made from the same material: titanium alloy.

Mating Thread Design: The threads under the screw head and inside the hole have the same characteristics.
Patented Fixation Technology

Monoaxial & Polyaxial Locking Fixation

Combining patented Oneclip® monoaxial locking and DTS® polyaxial locking technologies for versatile fixed-angle stability.

Monoaxial locking fixation - Oneclip

Monoaxial Locking Fixation

Patented
  • Oneclip®: patented design.
  • Perpendicular rigid locking construct ensuring maximum construct rigidity.

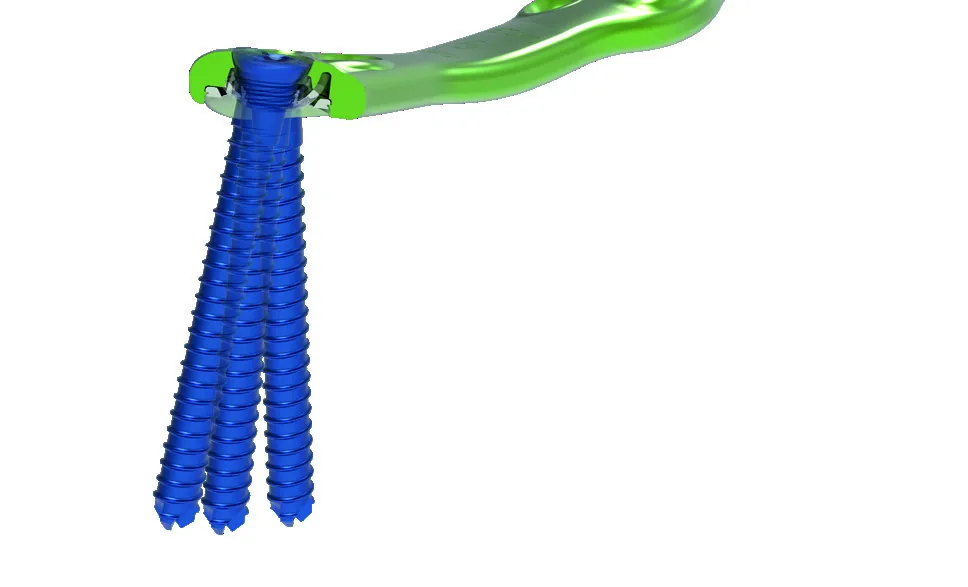

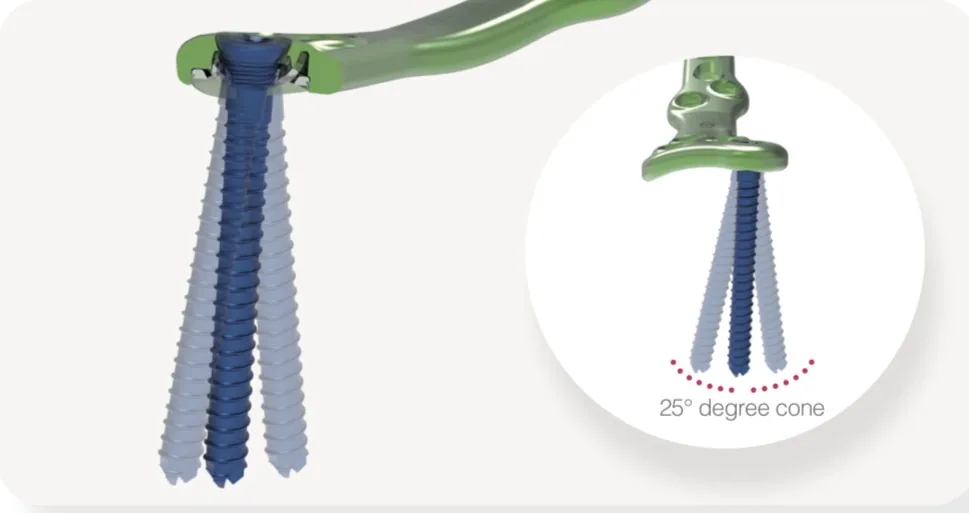

Polyaxial locking fixation - DTS System
25° Degree Cone

Polyaxial Locking Fixation

DTS® System
  • The DTS® system (patented design) allows the screw to lock into the plate while permitting an angulation of the screw.
  • Newclip Technics plates combine both polyaxial and locking technologies to create a fixed-angle construct.
  • Possible angulation of the screw before locking (25° locking range) thanks to the DTS® System to avoid the joint.
Compressive ramp oblong hole

Compressive Ramp Oblong Hole

Dynamic
  • The ramp oblong hole allows a simple and controlled compression by the screw/plate interface.
  • Controlled osteotomy gap closure through guided screw ramp translation.
Implant Specifications

Screw References & Sizing

Comprehensive range of Ø4.5 mm reinforced core locking and non-locking screws.

Ø4.5 mm Reinforced Core Locking Screws*

Titanium alloy (Ti-6Al-4V ELI) • Blue anodized

18 Sizes
Ref. Description
ST4.5L15D-ST Ø4.5 mm reinforced core locking screw - L15 mm - STERILE ** Optional
ST4.5L18D-ST Ø4.5 mm reinforced core locking screw - L18 mm - STERILE ** Optional
ST4.5L21D-ST Ø4.5 mm reinforced core locking screw - L21 mm - STERILE ** Optional
ST4.5L24D-ST Ø4.5 mm reinforced core locking screw - L24 mm - STERILE
ST4.5L27D-ST Ø4.5 mm reinforced core locking screw - L27 mm - STERILE
ST4.5L30D-ST Ø4.5 mm reinforced core locking screw - L30 mm - STERILE
ST4.5L35D-ST Ø4.5 mm reinforced core locking screw - L35 mm - STERILE
ST4.5L40D-ST Ø4.5 mm reinforced core locking screw - L40 mm - STERILE
ST4.5L45D-ST Ø4.5 mm reinforced core locking screw - L45 mm - STERILE
ST4.5L50D-ST Ø4.5 mm reinforced core locking screw - L50 mm - STERILE
ST4.5L55D-ST Ø4.5 mm reinforced core locking screw - L55 mm - STERILE
ST4.5L60D-ST Ø4.5 mm reinforced core locking screw - L60 mm - STERILE
ST4.5L65D-ST Ø4.5 mm reinforced core locking screw - L65 mm - STERILE
ST4.5L70D-ST Ø4.5 mm reinforced core locking screw - L70 mm - STERILE
ST4.5L75D-ST Ø4.5 mm reinforced core locking screw - L75 mm - STERILE
ST4.5L80D-ST Ø4.5 mm reinforced core locking screw - L80 mm - STERILE
ST4.5L85D-ST Ø4.5 mm reinforced core locking screw - L85 mm - STERILE
ST4.5L90D-ST Ø4.5 mm reinforced core locking screw - L90 mm - STERILE
* Blue anodized ** Optional sterile references

Ø4.5 mm Non-Locking Screws*

Titanium alloy (Ti-6Al-4V ELI) • Standard cortical purchase

15 Sizes
Ref. Description
CT4.5L24D-ST Ø4.5 mm non-locking screw - L24 mm - STERILE
CT4.5L27D-ST Ø4.5 mm non-locking screw - L27 mm - STERILE
CT4.5L30D-ST Ø4.5 mm non-locking screw - L30 mm - STERILE
CT4.5L35D-ST Ø4.5 mm non-locking screw - L35 mm - STERILE
CT4.5L40D-ST Ø4.5 mm non-locking screw - L40 mm - STERILE
CT4.5L45D-ST Ø4.5 mm non-locking screw - L45 mm - STERILE
CT4.5L50D-ST Ø4.5 mm non-locking screw - L50 mm - STERILE
CT4.5L55D-ST Ø4.5 mm non-locking screw - L55 mm - STERILE
CT4.5L60D-ST Ø4.5 mm non-locking screw - L60 mm - STERILE
CT4.5L65D-ST Ø4.5 mm non-locking screw - L65 mm - STERILE
CT4.5L70D-ST Ø4.5 mm non-locking screw - L70 mm - STERILE
CT4.5L75D-ST Ø4.5 mm non-locking screw - L75 mm - STERILE
CT4.5L80D-ST Ø4.5 mm non-locking screw - L80 mm - STERILE
CT4.5L85D-ST Ø4.5 mm non-locking screw - L85 mm - STERILE
CT4.5L90D-ST Ø4.5 mm non-locking screw - L90 mm - STERILE
* Not anodized
